电脑振动刀皮革切割机_制鞋机械设备_电脑开料机械

电脑振动刀皮革切割机_制鞋机械设备_电脑开料机械_参数

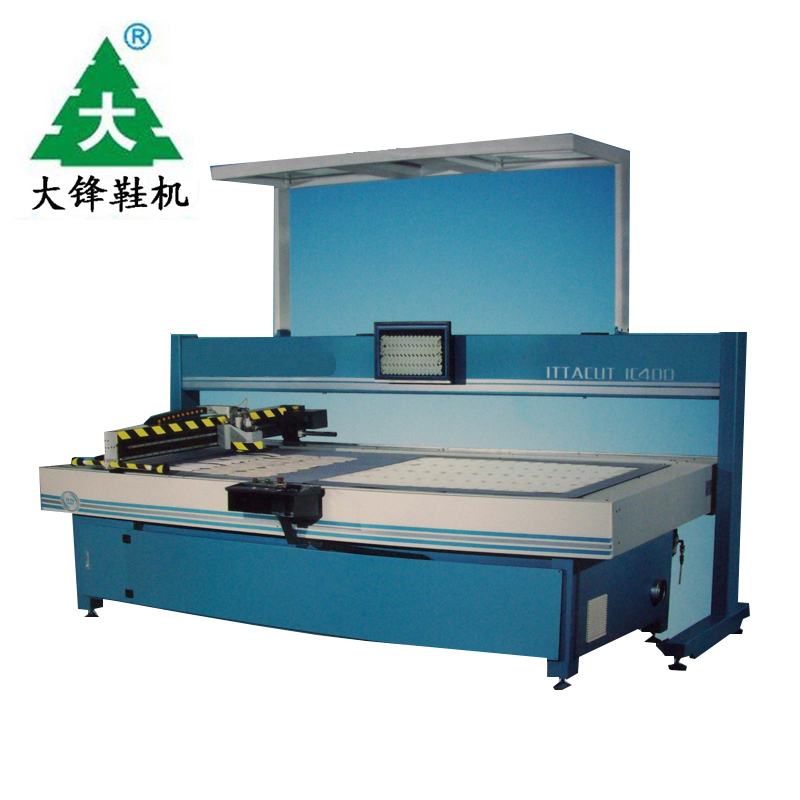

数控震动刀皮革切割机IC400

Computer Leather Cutting Machine With Oscillating Knife



有效切割范围 Cutting Area
3000×1100mm





既可以节省大量的人力、材料、刀模,不分订单大小都能生产出准确而优质的产品。
The machine not only can limit the cost from all sides, but also can produce thefinest products.





技术参数 Technical Features



 机器尺寸/machine dimension

 长/lenght

  4000mm

 宽/width

  1840mm

 高/height

  2700mm

 切割范围/working area

 长/lenght

  3000mm(in2 sections)

 宽/width

  1100mm

 速度/speed

 切割速度/max.speed

  60m/min

 配附刀具气动振动频率
 The Pneumatic vibration frequency of
 the equipped knives

  10000-12000 times/min

 功率/power

  3-phase200-400VAC
  50-60HZ 10.5KW
  Monophase 200-240VAC
  50-60HZ 2KW

 气动附压/pneumatic

  4/6BAR



型号



机械尺寸(长宽高)



切割速度



净重



电压



功率



DF400



4000×1840×2700



70m/min



650kg



380V



13KW

类别:面部开料鞋机系列
价格:0.00元
数量:10
是否新品:
是否推荐:
